Home » Products » Fire Extinguisher » Auto Safe Automatic Fire Extinguisher

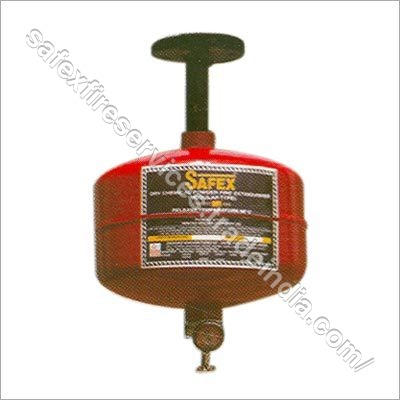

Auto Safe Automatic Fire Extinguisher

Auto Safe Automatic Fire Extinguisher
Auto Safe Automatic Fire Extinguisher
Product Code : 08 Safex
Product Description
We feel proud to introduce ourselves as the leading organization in domain, engaged in offering an excellent range of Auto Safe Automatic Fire Extinguisher. The offered extinguisher is extensively demanded in the industrial sectors as it quickly stub out fire with in seconds. This extinguisher is designed and manufactured under the guidance of our professionals using high grade material in adherence with international standards. We offer this Auto Safe Automatic Fire Extinguisher to our clients at very reasonable rates.

Specifications:


Safex present modular type ABC clean agent gas and ABC Dry Powder along with a range of gaseous automatic fire extinguishers.

Safex automatic ABC Dry Chemical Powder or clean agent gas and other gaseous fire extinguishers are a technological break through that provides automatic fire protection for electrical, electronic, flammable liquid and a variety of other risks.

Auto Safe is an automatic extinguisher, which does not require any external source of power to operate. It can be utilized for local applications or total flooding of hazards.

The modular type of extinguisher is based on sprinkler technology. unlike the sprinkler, the nozzle is gas-tight. the release temperature  can be adjusted can be adjusted to suit prevailing conditions.

This extinguishers are most ideal for protection of computer area, ATM Center, server room, fuel and flammable liquid storage, oil fill-in stations, transformers, automobile garages, marine engines, paint and varnish booths, welding benches, domestic gas Storage's particularly for hotels etc, and where water damage cannot be tolerated.

TECHNICAL DATA CONSTRUCTION

Automatic DCP and Clean agent Gas Fire Extinguisher mainly consist of MIG welded M.S. body, 2mm CRC Sheet. The upper part of which is fitted with adapter or flange for fixing on ceiling or wall the fixed automatic release nozzle is based on sprinkler imported bulb set at 57° C or  107°Cspecial temperature setting can be provided according to specific requirements. An imported pressure  gauge is fitted for instant verification of reliability and functionally of every unit.

Nozzle is specially designed to give more that 99% discharge. Together with orifice characteristic to cover adequately fire risks with scattering cone of 40° to 45° angle.

This extinguisher is presently available in 4 sizes.
2,5,10 and 15kgs with either wall or ceiling mounted. Extinguishers of higher capacities and with special mountings can also be offered.

PERFORMANCE DATA

Sizes Propellant  Working Pressure  Testing Pressure
Area Protection  Volume Protected  Hanging Vertically Above Risk  Operation Time In Second
Powder/Clean Agent
2kgs  Nitrogen  7 to 15 kg/cm2  35kg/ cm2  1 to 1.5m  3m3 1.5m  8-10  Powder/Clean
5kgs  Nitrogen
7 to 15 kg/cm2
35kg/ cm2
3.5 to 4m2  8m3  1.5 to 2m  10-15  Powder/Clean
10kgs  Nitrogen
7 to 15 kg/cm2
35kg/ cm2
7 to 8m2  15m3  1.75 to 2.25m  15-20  Powder/Clean
15kgs  Nitrogen
7 to 15 kg/cm2
35kg/ cm2
8 to 10m2  20m3  2 to 3m  18-23  Powder/Clean



THE ADVANTAGES

  • Keeps guard and extinguishes fire quickly and efficiently, especially in those places where fire could cause extensive damage if not detected and extinguished in time
  • Hazard free clean agent keeps article safe and intact in case of fire.
  • provides concentrated fire protection for vital equipment.
  • Highly Cost effective compared to automatic fixed fire protection systems
  • It is a Portable unit, easy to install and re-locate
  • Imported pressure gauge fitted for instant verification of functionally and reliability of every unit
  • Automatic and reliable security round the clock
  • Provides security in case of emergencies and power failure without power backup.
