Foam Based Fire Extinguishers

Foam Based Fire Extinguishers
Foam Based Fire Extinguishers
Product Code : 09
Product Description

We are the foremost manufacturer, exporter and supplier of quality approved range of Foam Based Fire Extinguishers that are manufactured by our experts utilizing premium grade raw material and latest technology in adherence with the global standards. These extinguishers forms a thick blanket of foam over the burning surface thereby cutting off the oxygen supply and smothering the fire. We offer this Foam Based Fire Extinguishers to the clients at industry leading rates.

Features:

  • Robust construction

  • High strength

  • Excellent operational

  • Longer service life



General Information

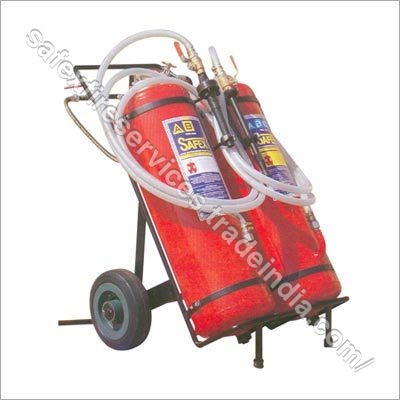

TWIN5050 is mobile foam and powder fire extinguisher with nitrogen propellant cylinder. This fire extinguisher by the company SAFEX FIRE SERVICES LTD. that is in operation since 1972 and is ISO 9001 certified. The qualitative standards fixed are achieved through a careful selection and rating of the suppliers and through continuous and strict quality controls of all the components in compliance with the ISO 2859-1 standard.

Trolley

The trolley structure is made of steel sections, with rubber wheels of 300mm diameter. The foam nitrogen cylinder and the accessories are fixed by saddles on a sturdy hand-pulled trolley: the arrangement of the individual equipments has been designed for maximum ease of handling.

Extinguisher Unit

The foam cylinder is made of Mild Steel, while the one containing the powder is made of mild steel, both tested at 35kgf/cm2. A large-diameter threaded ring nut is welded at the top of the cylinders for easy charging and internal inspection during periodic testing. To the ring nut is screwed a forged brass cap with built-in safety valve of the type with calibrated spring made of stainless steel so as to guarantee calibration in time and even in the worst atmospheric conditions. In the rear part of the trolley is fixed the pressurization of the powder and foam cylinders.

The discharge of nitrogen for the pressurization is controlled by an intermediate pressure reducer calibrated at 12 bars so as to obtain a uniform discharge at constant pressure. Two on-off valves placed between the reducer and the cylinders can allow independent pressurization of the two cylinders. The cylinders are pressurized for around 15 seconds, after which the spray guns can be used for discharging the powder and the foam. The discharge is controlled by means of two spray nozzles made of light alloy/plastic with ergonomically designed handgrip for an easy and rapid grip. the spray nozzles are fed by two plastic hoses. Each of 19mm diameter and 5m long. and offer maximum agility and ease of handling to the operator. The unit is charged with ABC 50% powder, compatible with the AFFF6% film-forming foam.

Use

This mobile fire extinguisher is used in large fires of any class A,B or C type, of vertically stored goods and of inflammable liquids that can spread on the surface. Normally it is used by first discharging the foam to knock down the high flames and then if necessary using the powder, compatible with the foam, to immediately put out already reduced flames.

Maintenance

To keep the fire extinguisher in perfect working condition, we recommended its maintenance according to the IS : 2190 standard. use of non-regional spare parts and refills shall entail the lapse of the fire extinguisher approval.

Technical Data

Trade Name
SAFEX TWIN5050
Extinguishing classes  A B4/ A B1C
Charge  50 Ltr. foam AFFF 6% / 50 Kgs ABC powder
Working pressure  15 kgf/cm2 Max
Safety Valve  20kgf / cm2 + /-0,2
Cap  75mm
Utilization temperature  +5+60C°
Discharge time  30sec. powder / 30sec. foam
Hose  19mmx5m
Range  10-12m
Cylinder  Bottom: drawing-body: Rolling and Welding
Steel  Mild Steel IS: 1079 thickness 3mm
Test pressure  35kgf / cm2
Anti corrosive treatment
  • Phosphating
  • Inside and Outside Epoxy powder Coating
Propellant  Nitrogen 6.8 Ltr. - 200 bar
Dimensions (hxixw)  1020X1060X850
Total Weight  250 kgs.



SAFEX FIRE SERVICES LTD.
202 A, Dhanraj Industrial Estate, Sun Mill Road, Lower Parel (W), Post Box No. 6314, Mumbai - 400013, Maharashtra, India
Mr. Tejas Shah (Chief Executive Officer)
Mr. Ruchit Panchamia (Director)
